Vigor2928
Firewall 10G Dual-WAN de Alto Desempenho
Equipamentos
Vigor 2928
Firewall 10G de alto desempenho

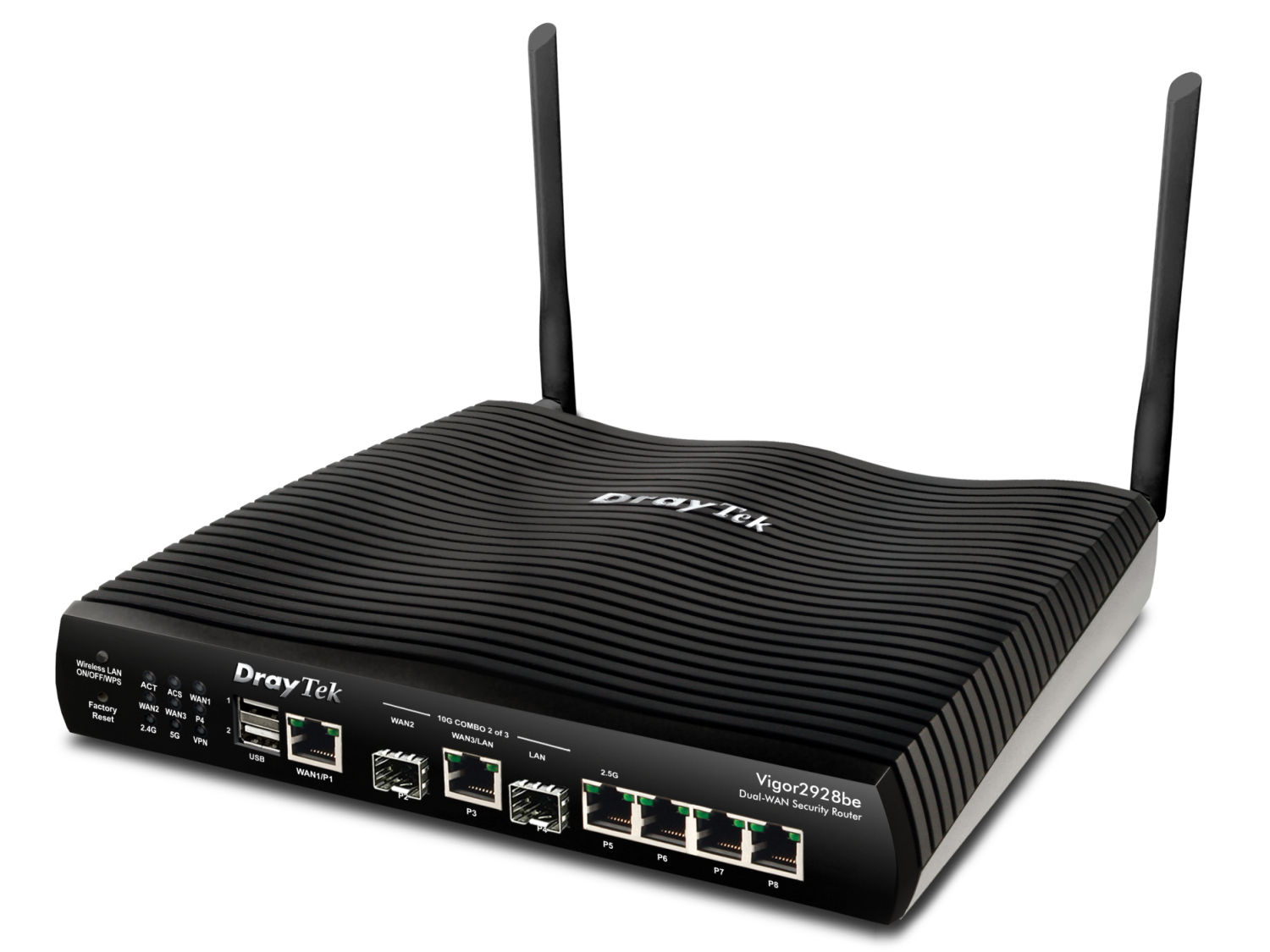

O Vigor2928 é um firewall VPN Dual-WAN de alto desempenho, equipado com três interfaces 10G compatíveis com conexões Ethernet e fibra óptica. Como o primeiro roteador da DrayTek com WAN Ethernet 10G, ele entrega conectividade de alta velocidade para ambientes corporativos com grande demanda de largura de banda e aplicações críticas.
Comutável WAN/LAN 10GbE
Ethernet 10M/100M/1G/2.5G/10G, RJ-45
50 VPN
Taxa de throughput de VPN IPsec de até 540 Mbps
60.000 Sessões NAT
9.3 Gbps
Max. Throughtput NAT

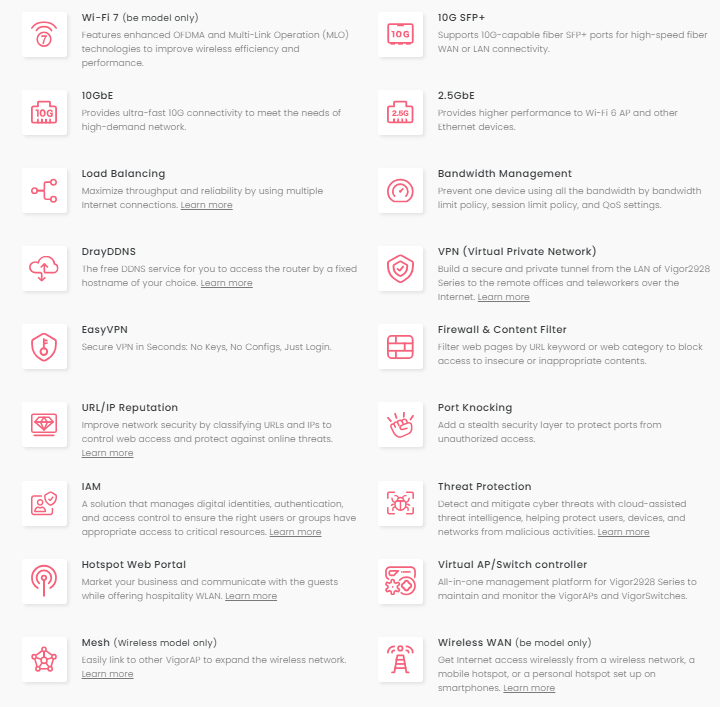

Principais Features
Performance | |
| NAT Session | 60K |
| Max. NAT (Mbps) | 9300 |
WAN | |
| Ethernet (1 GbE) | 1 |
| Ethernet (10 GbE) | 1 |
| SFP (10G) | 1 |
| Ethernet – Switchable* | |
Internet Connection | |
| IPv4 | PPPoE DHCP Static IP |
| IPv6 | PPP DHCPv6 Static IPv6 TSPC 6rd 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Failover | |
| Load Balancing | IP-based, Session-based |
| Connection Detection | ARP, Ping |
| WAN Data Budget | |
| Dynamic DNS | |
| DrayDDNS | |
LAN | |
| Fixed LAN (RJ-45, GbE) | 3 |
| Fixed LAN (RJ-45, 2.5GbE) | 1 |
| LAN Subnet | 8 |
| VLAN | 802.1q Tag-based VLAN Port-based VLAN |
| Max. Number of VLAN | 8 |
| DHCP Server | Multiple IP Subnet Custom DHCP Options Bind-IP-to-MAC |
| Wired 802.1x Authentication | |
| Port Mirroring | |
| Local DNS Server | |
| Conditional DNS Forwarding | |
| Hotspot Web Portal (Profile No.) | 4 |
| Hotspot Authentication | Click-Through Social Login SMS PIN RADIUS External Portal Server |
Other Ports | |
| USB | 2 |
| USB Type | 2.0 |
| USB Application | User Management FTP File Sharing Device Status Printer Server USB WAN |
| SMB File Sharing (Requires external storage) | |
Networking | |
| Routing | IPv4 Static Route IPv6 Static Route Policy Route Inter-VLAN Route RIP v1/v2 BGP OSPF (V2/V3) |
| Policy-based Routing | Protocol IP Address Port |
| DNS Security (DNSSEC) | |
| IGMP | IGMP v2/v3 IGMP Proxy IGMP Snooping & Fast Leave |
| Local RADIUS server | |
VPN | |
| Site-to-Site VPN | |
| Teleworker VPN | |
| EasyVPN | |
| Protocols | IPsec IKEv1/IKEv2 IKEv2-EAP IPsec-XAuth OpenVPN Wireguard |
| Max. VPN Tunnels | 50 |
| IPsec VPN Throughput (AES 256 bits) (single-directional) (Mbps) | 580 |
| WireGuard VPN Throughput (single-directional) (Mbps) | 85 |
| User Authentication | Local RADIUS TACACS+ mOTP TOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | DES 3DES AES |
| Translate Local Network(Site-to-Site VPN) | |
| Single-Armed VPN | |
| NAT-Traversal (NAT-T) | |
| VPN Matcher | |
| VPN Connection Status | |
| Backup & Restore | |
NAT | |
| Port Forwarding | |
| Port Trigger | |
| DMZ Host | |
| UPnP | |
| ALG (Application Layer Gateway) | RTSP, SIP |
Bandwidth Management | |
| Traffic Shaping Policy | |
| IP-based Bandwidth Limit | |
| IP-based Session Limit | |
| QoS (Quality of Service) | IP Address Port Application |
| Default Policy | |
| VoIP Prioritization | |
| APP QoS | |
Management | |
| Local Service | HTTP HTTPS Telnet SSH v2 FTP TR-069 |
| Config Backup/Restore | |
| Firmware Upgrade | WUI, TFTP, TR-069 |
| Role-based Privilege | |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | E-mail, SMS |
| SNMP | v1, v2c, v3 |
| Syslog | |
| Virtual AP Controller (Device up to) | 20 |
| Virtual Switch Controller | 10 |
| VigorACS Management (Since f/w) | V5.4.0 |
Security | |
| URL/IP Reputation | |
| Firewall Filter | IP, Content, Traffic |
| Port Knocking | |
| Defense Setup | ARP Spoofing, IP Spoofing |
| MAC Filtering Profile | |
| IPv6 Address Security | |
IAM | |
| Users & Groups | |
| Access Policies | |
| Group Policies | |
| Conditional Access Policy | |
| Resources | |
| Account Status | |
| Backup and Restore | |
Monitoring | |
| Log Center | |
| WAN | |
| ARP Table | |
| Route Table | |
| DHCP Table | |
| IPv6 TSPC Status | |
| IPv6 Neighbor Table | |
| LLDP Neighbors | |
| DNS Cache Table | |
| Remote DSL Status | |
| SFP Information | |
| PPPoE Pass-Through | |
| Session Table | |
| Running Table | |
Physical | |
| Power Input | DC 12V @ 1.5A |
| Max. Power Consumption (watts) | 18 |
| Dimension (mm) | 241 x 165 x 43 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
